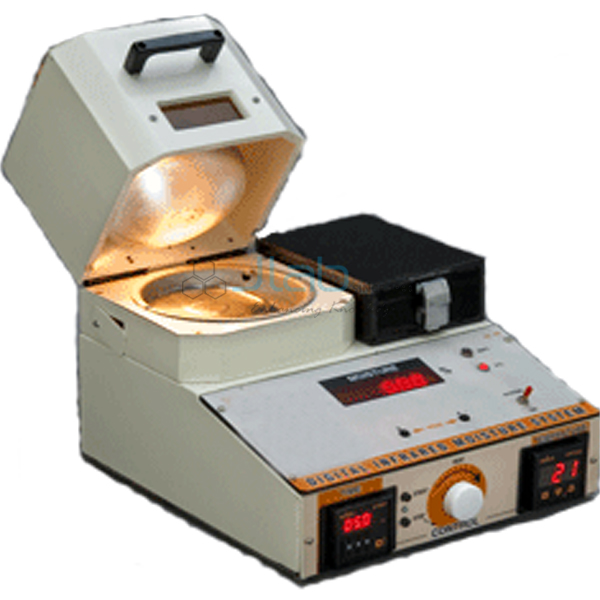

Digital Infrared Moisture System
Product Code : JA-IMB-1259
The Digital Infrared Moisture System (SKU JA-IMB-1259) determines moisture content by the dry-and-weigh method, heating the sample with infrared rods and measuring the weight loss. Its built-in software controls the heating rate and calculates results on a wet or dry basis. This digital infrared moisture analyser is supplied by JaincoLab to pharmaceutical, food, agriculture and research laboratories that need faster moisture analysis.
Specifications
Heating is by infrared rods from ambient to 250 °C under a platinum temperature sensor; the system takes 10 to 100 g samples (optional up to 300 g), has 0.01 g sensitivity, a 0.1 to 99.9% working range, ±0.1% accuracy and 0.10% readability, and runs on 230 V ±10%, 50 Hz, 200 W.
| Product | Digital Infrared Moisture System |
| SKU | JA-IMB-1259 |
| Measurement method | Infrared heating and detection of weight loss |
| Heat source | Infrared rods |
| Temperature setting | Ambient to 250 °C |
| Temperature control | Platinum temperature sensor |
| Accuracy | ±0.1% |
| Sample weight | 10 g to 100 g (optional up to 300 g) |
| Sensitivity | 0.01 g |
| Working range | 0.1% to 99.9% |
| End of analysis | Time-out, 1 to 999 min |
| Readability | 0.10% |
| Results | Moisture in percentage; wet or dry basis |
| Printer | Optional |
| Power | 230 V ±10% AC, 50 Hz, 200 W |
| Standard accessories | Aluminium disposable pans, tweezers, mains lead, instruction manual |
Applications of the digital infrared moisture analyser
The analyser replaces an oven and separate weighing for routine loss-on-drying work, giving a moisture result for powders, granules, foods and agricultural samples in one run with the heating profile controlled by its software.
- Moisture of pharmaceutical powders and granules
- Moisture in food products and ingredients
- Moisture in agricultural produce and feeds
- Research and teaching laboratories that compare wet and dry basis results
Scope of supply and ordering
The listing covers the digital infrared moisture system with its standard accessories: aluminium disposable pans, tweezers, mains lead and instruction manual. The printer and the 300 g sample option are extras quoted separately. Accessories, spares and quantities are confirmed on the quotation.
Minimum order quantity, lead time and packing are confirmed on each quotation for the configuration, the number of units and the delivery destination. JaincoLab supplies single analysers and multiple units for laboratories, institutions and tender orders.
Frequently asked questions
What temperature range does it cover?
The temperature can be set from ambient to 250 °C, controlled by a platinum temperature sensor.
What sample size can it take?
It takes 10 g to 100 g samples as standard, with an option up to 300 g.
Can results be given on a dry basis?
Yes. The built-in software calculates moisture on a wet basis or a dry basis.
Is a printer included?
No. The printer is optional and is quoted separately.
