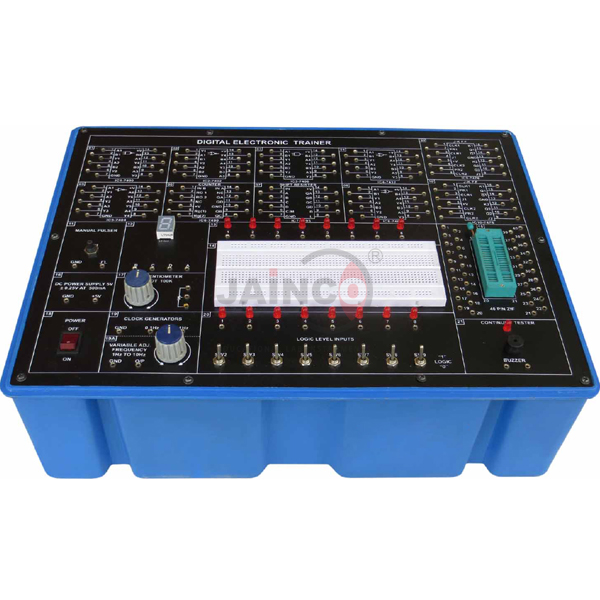

Digital Electronic Trainer
Product Code : JA-EWB-8762
The digital electronic trainer is a breadboard-based trainer for digital logic practicals, covering basic gates and truth tables, Boolean algebra and De Morgan theorems, TTL parameters, flip-flops, combinational circuits, counters, a 4-bit universal shift register and a 7-segment display with decoder/driver. Further experiments can be built with the on-board components and breadboard (SKU JA-EWB-8762).
Specifications
Listed features:
| Product | Digital Electronic Trainer |
| SKU | JA-EWB-8762 |
| Format | Trainer with on-board components and breadboard |
| Gates covered | NOT, OR, AND, NOR, NAND, EX-OR, EX-NOR |
| Flip-flops | RS, J-K, D, T |
| Display | 7-segment display with decoder/driver |
| Power supply and dimensions | Confirmed on the quotation |
Experiments listed
The experiment list includes:
- Basic gates and their truth tables; laws of Boolean algebra and De Morgan theorems
- TTL terminology and circuit parameters
- RS, J-K, D and T flip-flops built from gates and ICs
- Half and full adders and subtractors, even/odd parity checker, multiplexer, demultiplexer, binary-gray and gray-binary converters, 2-bit comparator
- Down counter, 3-bit synchronous and asynchronous ripple up counters, ring counter, decade counter
- 4-bit universal shift register: parallel load, shift right and shift left
Scope of supply and ordering
The listing covers the digital electronic trainer with its on-board components and breadboard, supplied by JaincoLab. Packing, lead time and the quantity per order are agreed on the quotation.
