Curie Temperature Kit For Ferroelectric
Product Code : JA-PLE-7946

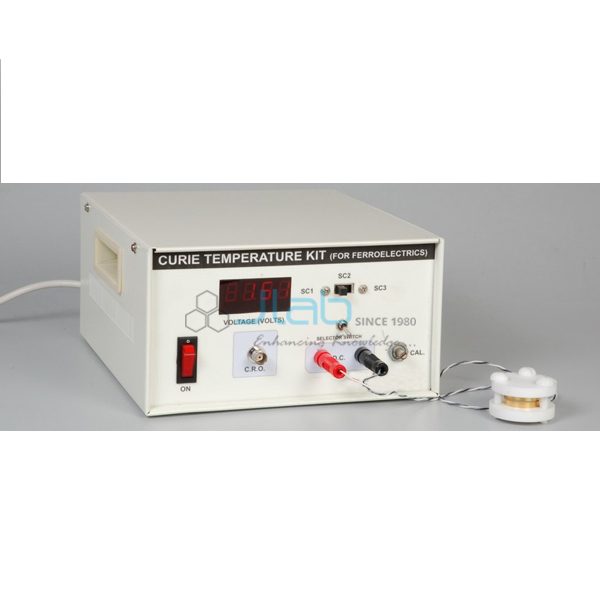

The Curie Temperature Kit For Ferroelectric (SKU JA-PLE-7946) is supplied by JaincoLab for measuring how the dielectric constant of a ferroelectric sample changes with temperature and for locating its transition, or Curie, temperature. The main unit provides a 1 kHz audio oscillator, standard capacitors and a digital AC voltmeter, while the sample sits between gold-plated brass discs in a high-temperature cell heated by a PID-controlled furnace from room temperature to 250°C.
Specifications
The set-up consists of a main unit with a 1 kHz audio oscillator, standard capacitors in the pF and nF ranges and a 0 to 9.99 V AC digital voltmeter, a dielectric cell of 25 mm gold-plated brass discs in a high-temperature cell holder, and a PID-controlled furnace from room temperature to 250°C.
| Product | Curie Temperature Kit For Ferroelectric |
| SKU | JA-PLE-7946 |
| Experiment | Dielectric constant against temperature; Curie (transition) temperature |
| Digital voltmeter | 0 to 9.99 V AC |
| Standard capacitors | pF and nF values |
| Audio oscillator | 1 kHz |
| Dielectric cell | 25 mm gold-plated brass discs in a high-temperature cell holder |
| Furnace | PID controlled, room temperature to 250°C |
Applications of the Curie temperature kit
In B.Sc and engineering physics practicals the kit is used to measure the capacitance of a ferroelectric sample as it is heated, calculate its dielectric constant at each temperature and identify the Curie temperature from the peak in the resulting curve.
- Studying the dielectric constant of a ferroelectric as a function of temperature
- Locating the ferroelectric-to-paraelectric transition (Curie) temperature
- Introducing ferroelectric materials and phase transitions in solid-state physics
- Controlled heating up to 250°C in materials-science laboratory work
Scope of supply and ordering
The listing covers the main unit (audio oscillator, standard capacitors and digital voltmeter), the dielectric cell with 25 mm gold-plated brass discs and the PID-controlled furnace. The ferroelectric sample is not specified in the listing and is confirmed with the order. Accessories, spares and quantities are confirmed on the quotation.
Minimum order quantity, lead time and packing are confirmed on each quotation for the number of set-ups and the delivery destination. JaincoLab supplies single kits to college physics departments as well as bulk institutional and tender orders, with export to Africa, the Middle East and South and South-East Asia.
Frequently asked questions
What does the kit measure?
It measures the dielectric constant of a ferroelectric sample as a function of temperature, so that the transition (Curie) temperature can be observed.
What temperature range does the furnace cover?
The PID-controlled furnace runs from room temperature up to 250°C.
What is in the main unit?
A 1 kHz audio oscillator, standard capacitors in the pF and nF ranges, and a 0 to 9.99 V AC digital voltmeter.
Related products
More solid-state and modern physics kits are listed under Physics Lab Equipments, within the JaincoLab range of physics lab equipment.
Request a quote
For a price on the Curie Temperature Kit For Ferroelectric, send the number of kits and the destination through the JaincoLab contact page or email [email protected].
