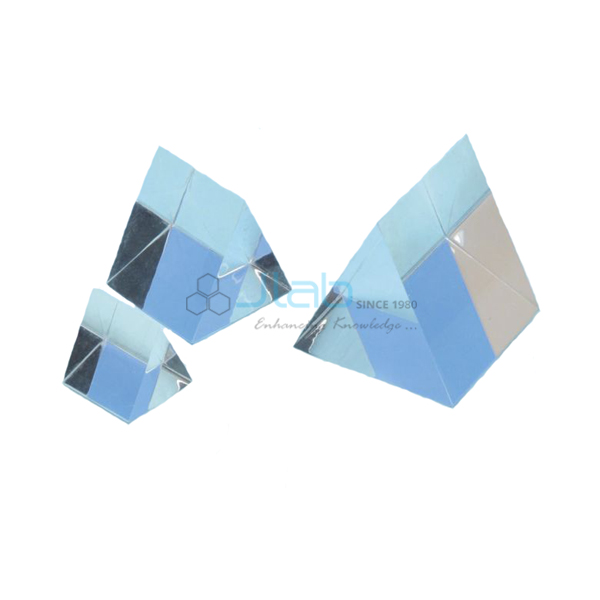

Clear Glass Prism
Product Code : JA-LOE-7963
The Clear Glass Prism (SKU JA-LOE-7963) is an optically worked prism of high-quality, bubble-free glass for refraction and dispersion experiments in school and college physics laboratories. The standard item is an equilateral clear glass prism, 38 mm, with 60 x 60 x 60° angles and slightly bevelled edges, and the same listing includes a 50 mm equilateral prism, right-angled 90 x 45 x 45° prisms and a 90 x 60 x 30° prism. It is used with optical pins, a ray box or a spectrometer.
Specifications
The prism is made of high-quality glass free from bubbles, with accurately and optically worked surfaces and slightly bevelled edges; the standard equilateral prism has 38 mm faces and 60° angles.
| Product | Clear Glass Prism |
| SKU | JA-LOE-7963 |
| Material | High-quality clear glass, free from bubbles |
| Surfaces | Optically worked |
| Edges | Slightly bevelled |
| Standard prism | Equilateral, 60 x 60 x 60°, 38 mm, accurately worked |
| Other versions listed | 60 x 60 x 60° - 50 x 50 mm; 90 x 45 x 45° - 38 x 38 mm; 90 x 45 x 45° - 50 x 50 mm; 90 x 60 x 30° |
Applications of the clear glass prism
A clear glass prism is a basic item for light and optics practicals: students use it to trace the path of a ray, measure deviation and refractive index and split white light into a spectrum, while the right-angled versions also show total internal reflection.
- Tracing the refraction of light through an equilateral prism with optical pins and measuring the angle of deviation
- Plotting angle of incidence against angle of deviation to find the angle of minimum deviation, a standard senior secondary practical
- Dispersion of white light into a spectrum
- Total internal reflection and turning a ray through 90° or 180° with a 90 x 45 x 45° prism
Scope of supply and ordering
Each unit is one clear glass prism of the angles and size ordered from the versions listed above. Optical pins, ray boxes, spectrometers and other accessories, spares and quantities are confirmed on the quotation.
Minimum order quantity, lead time and packing are confirmed on each quotation according to the prism types, quantities and delivery destination. JaincoLab supplies prisms as class sets for schools, in bulk for colleges and education projects, and for export to buyers in Africa, the Middle East and South and South-East Asia.
Frequently asked questions
What are the angles and size of the standard prism?
The standard prism is equilateral, with 60 x 60 x 60° angles and 38 mm accurately worked faces.
Which other prism shapes and sizes are available?
The listing also includes a 60 x 60 x 60° prism of 50 x 50 mm, 90 x 45 x 45° prisms of 38 x 38 mm and 50 x 50 mm, and a 90 x 60 x 30° prism.
What is the glass quality?
The prisms are made of high-quality glass free from bubbles, with optically worked surfaces and slightly bevelled edges.
Related products
More prisms, lenses and mirrors are listed in Light & Optics Equipment from JaincoLab, a physics lab equipment manufacturer in India.
Request a quote
To order the Clear Glass Prism, send the prism type, size, quantity and delivery destination through the JaincoLab contact page or email [email protected]. Institutions and contractors buying under a tender can also reach us via the tenders page.
