Capsule Filling Machine
Product Code : JA-PLE-2242

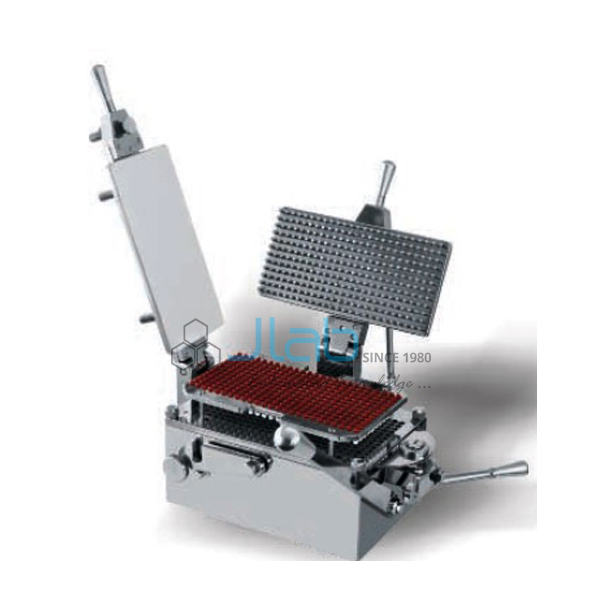

The Capsule Filling Machine (SKU JA-PLE-2242) is a compact, hand operated machine for filling two-part hard gelatine capsules of sizes 0, 1 and 2 using interchangeable plates. This manual capsule filling machine has a heavy cast-iron body, brass-plated or stainless steel contact parts and a cam-operated press, and is listed for filling 100 to 200 capsules. JaincoLab makes it for capsule practicals in pharmacy college pharmaceutics labs.
Specifications
The machine is hand operated, fills hard gelatine capsules of sizes 0, 1 and 2 with interchangeable plates, has a heavy cast-iron main body with brass-plated or stainless steel contact parts, and presses by a cam system; one stainless steel plate for any one size is supplied.
| Product | Capsule Filling Machine |
| SKU | JA-PLE-2242 |
| Operation | Hand operated, compact |
| Capsule type | Two-part hard gelatine capsules |
| Capsule sizes | No. 0, 1 and 2 by interchangeable plates |
| Main body | Heavy cast iron |
| Contact parts | Brass, richly plated, or stainless steel |
| Pressing | Cam system |
| Loading plate | Handle locking arrangement for lifting the loading plate |
| Plate supplied | One stainless steel plate for any one size |
| Filling | 100 to 200 capsules |
| Optional | Plates for other sizes, on demand |
Applications of the manual capsule filling machine
Pharmacy colleges use the machine to teach how hard gelatine capsules are separated, filled with powder and closed in batches, letting students prepare batches within the listed 100 to 200 capsule range during pharmaceutics practicals and then evaluate the filled capsules.
- Filling hard gelatine capsules of sizes 0, 1 and 2 in pharmaceutics practicals
- Preparing capsule batches for weight variation and disintegration tests
- Changing plates to switch between capsule sizes
- Small-batch capsule preparation in D.Pharm and B.Pharm labs
Scope of supply and ordering
The listing covers one hand operated capsule filling machine with one stainless steel plate for any one capsule size (0, 1 or 2), chosen when you order; plates for the other sizes are optional and supplied on demand. Accessories, spares and quantities are confirmed on the quotation.
Lead time, packing and minimum order quantity for the capsule filler are confirmed on each quotation according to the number of machines, the extra plates and the delivery destination. JaincoLab supplies single machines for a college lab, bulk orders for pharmacy institutions, and exports to Africa, the Middle East and South and South-East Asia.
Frequently asked questions
Which capsule sizes can it fill?
It fills two-part hard gelatine capsules of sizes 0, 1 and 2 by interchangeable plates.
How many plates come with the machine?
One stainless steel plate for any one size is supplied. Plates for the other sizes are optional and supplied on demand.
How does the pressing work?
Pressing is by a cam system, which saves time compared with a screw system, and a handle locking arrangement lets the operator lift the loading plate without damaging the capsules.
Related products
- Disintegration Test Machine
- Dissolution Rate Test Equipment
- Granulating Sieves
- Collapsible Tube Ointment Filling Machine
Browse all pharmacy lab equipment from JaincoLab for capsule, tablet and quality-control practicals.
Request a quote
To order the Capsule Filling Machine, send the capsule size, extra plates, quantity and delivery destination through the JaincoLab contact page or email [email protected]. Buying under a laboratory tender? Use our tenders page.
