C Core and Clip
Product Code : JA-M-7922

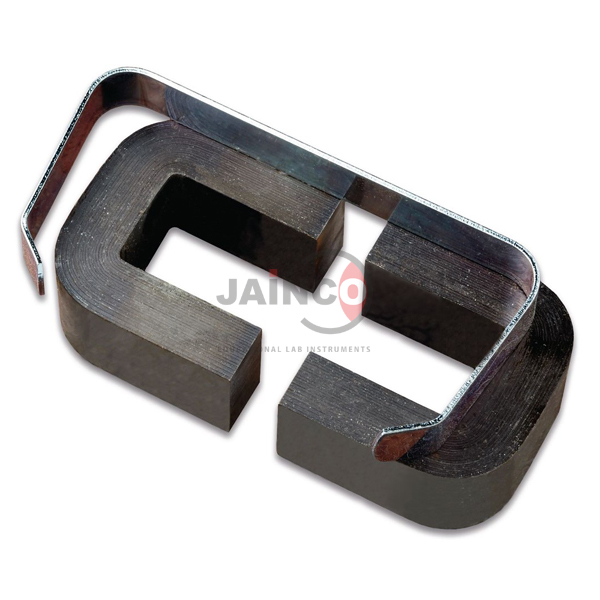

The JaincoLab double C core with clip (SKU JA-M-7922) is a laminated magnetic core that comes apart into two equal C-shaped halves. The core is a rounded rectangle with a square cross-section, cut across the middle so that the meeting faces are square and bare metal; a spring steel clip holds the halves together. Coils can be slipped on before closing it, which makes it useful for transformer and magnetism work in school and college laboratories.
Specifications
The core is laminated, shaped as a rounded rectangle with a square cross-section, and cut across the middle into two equal C-shapes with square, bare-metal meeting faces. A spring steel clip holds the two halves together. Dimensions are given on the quotation.
| Product | C Core and Clip |
| SKU / Product code | JA-M-7922 |
| Core | Laminated, rounded rectangle, square cross-section |
| Construction | Cut across the middle into two equal C-shapes |
| Meeting faces | Square, bare metal |
| Clip | Spring steel, holds the two halves together |
Applications of the double C core with clip
A split core lets students fit coils and then close the magnetic circuit themselves. It is used for:
- Building small transformers with coils slipped onto the core
- Showing the effect of closing and opening a magnetic circuit
- Electromagnet and induction demonstrations
- Magnetism practicals in senior-secondary and B.Sc physics
Scope of supply and ordering
This listing covers one double C core with its spring steel clip, SKU JA-M-7922. Coils and the magnetising and demagnetising coil are separate listings. Accessories, spares and quantities are confirmed on the quotation.
MOQ, lead time and packing are confirmed on each quotation for the quantity and destination. Cores are supplied singly or in class quantities for schools, colleges and tender orders.
Frequently asked questions
How do the two halves stay together?
A spring steel clip is provided to hold the two C-shaped halves together.
Is the core laminated?
Yes. It is a laminated core with a square cross-section.
Why are the meeting faces bare metal?
The square, bare-metal faces meet directly when the core is closed, giving a continuous magnetic path.
