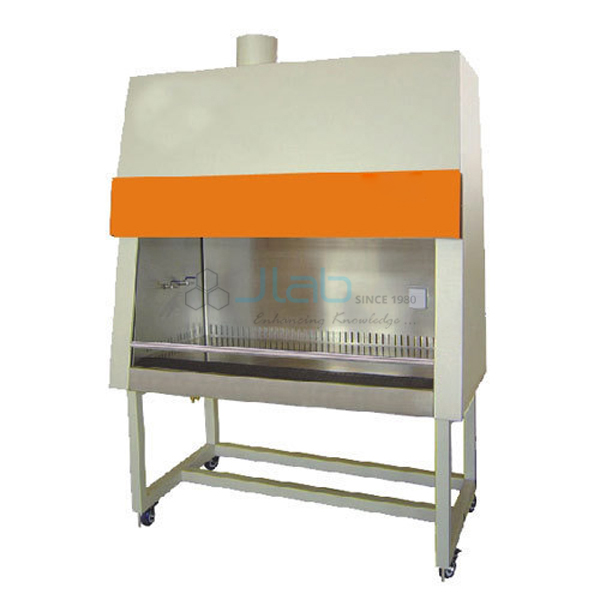

Biological Safety Cabinet
Product Code : JA-BSC-3830
The Biological Safety Cabinet (SKU JA-BSC-3830) is an enclosed work cabinet for handling micro-organisms, in which HEPA-filtered air is partly re-circulated over the work zone and partly exhausted through a filter, with an air barrier of make-up air at the front opening. This biological safety cabinet has glove ports and gauntlets, a sliding sash that lifts so the unit can also serve as a vertical laminar flow bench, and a built-in UV germicidal light. JaincoLab manufactures it for microbiology, pathology and research laboratories.
Specifications
The cabinet re-circulates filtered air over the work zone, draws make-up air in as an air barrier and exhausts through a filter with its own pre-filter; it runs on 220/230 V AC.
| Product | Biological Safety Cabinet |
| SKU | JA-BSC-3830 |
| Air system | Re-circulation of filtered air with supplementary air barrier (make-up air) |
| Exhaust | Filtered exhaust with pre-filter; virus burn-out unit on the exhaust (as listed) |
| Filtration | HEPA filter and pre-filter |
| Sash | Sliding front door; lifts to convert the unit to a vertical laminar flow bench |
| Glove ports | Glove ports and gauntlets |
| Table top | Satin-finish perforated stainless steel |
| Instruments | Static pressure manometer |
| UV light | Built-in UV germicidal light |
| Lighting | Fluorescent |
| Service cock | For gas, air or vacuum line |
| Power | 220/230 V AC |
Applications of the biological safety cabinet
It keeps cultures in a filtered, enclosed work zone and passes the exhaust air through a filter before it leaves the cabinet.
- Handling bacterial and fungal cultures in microbiology laboratories
- Pathology and diagnostic teaching laboratories in medical colleges
- Cell and tissue culture in biotechnology research
- Use as a vertical laminar flow bench with the sash raised
Scope of supply and ordering
The listing covers the cabinet with satin-finish perforated stainless steel table top, sliding front door, static pressure manometer, UV germicidal light, glove ports and gauntlets, HEPA filter, pre-filter, exhaust pre-filter, fluorescent lighting and gas/air/vacuum cock. The cabinet class, working-area size and suitability for particular organisms are confirmed on the quotation. Accessories, spares and quantities are confirmed on the quotation.
Minimum order quantity, lead time and packing are confirmed on each quotation for the size and number of cabinets and the delivery destination. Single cabinets for laboratories and bulk quantities for institutional and tender orders are supplied.
Frequently asked questions
Can it be used as a laminar flow bench?
Yes. Lifting the sliding sash converts it for use as a conventional vertical laminar flow bench.
What is supplied with it?
A perforated stainless steel table top, sliding front door, static pressure manometer, UV germicidal light, glove ports and gauntlets, HEPA filter, pre-filters, fluorescent lighting and a gas/air/vacuum cock.
Which cabinet class is it?
The cabinet class and the organisms it is suitable for are confirmed on the quotation for the configuration ordered.
