Bernoulli Tube Set
Product Code : JC-SL-4795

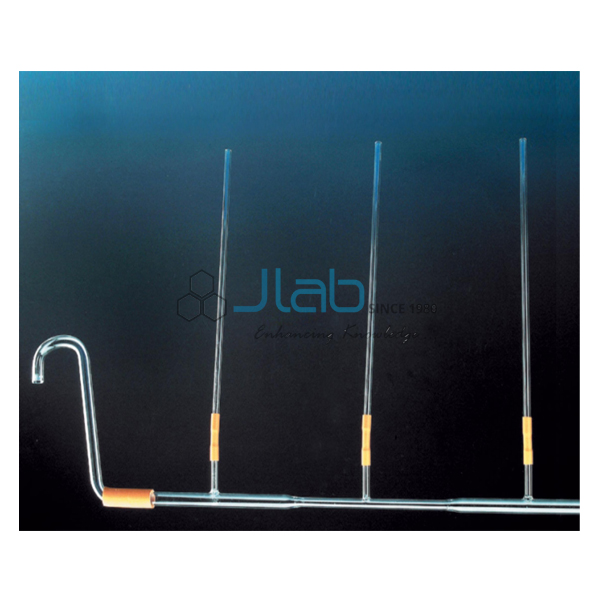

The Bernoulli tube set (SKU JC-SL-4795) demonstrates the Bernoulli effect produced by flowing water. Its straight tube is 500 mm long with a 10 mm bore made near its centre, and short side tubes in each section carry glass manometer tubes 270 mm long with an 8 mm bore. When water flows through, the manometer levels show lower pressure where the bore is narrow and the water moves faster.
Specifications
The tube dimensions in the set are listed as:
| Product | Bernoulli Tube Set |
| SKU | JC-SL-4795 |
| Main tube | Straight, 500 mm long |
| Centre bore | 10 mm, near the centre |
| Side tubes | Short side tube in each section |
| Manometer tubes | Glass, 270 mm long, 8 mm bore |
| Connectors | Rubber tubes for joining the manometer tubes |
What the set demonstrates
- Pressure falling where the tube narrows and flow speed rises
- Comparing manometer levels along a tube carrying flowing water
Scope of supply and ordering
The set covers the main tube, glass manometer tubes and rubber joining tubes; a water supply and stand are arranged by the user. Quantity and packing are confirmed on the quotation.
Frequently asked questions
What are the dimensions of the Bernoulli main tube?
It is 500 mm long, with a 10 mm bore made near its centre.
What size are the manometer tubes?
Glass tubes 270 mm long with an 8 mm bore, attached to the side tubes.
How are the manometer tubes connected?
With the rubber tubes supplied in the set.
Related products
Fluid and pressure apparatus is part of the school lab equipment range.
Request a quote
Send the number of Bernoulli tube sets through the contact page for a quotation.
