Bends with Vent
Product Code : JA-B-1592

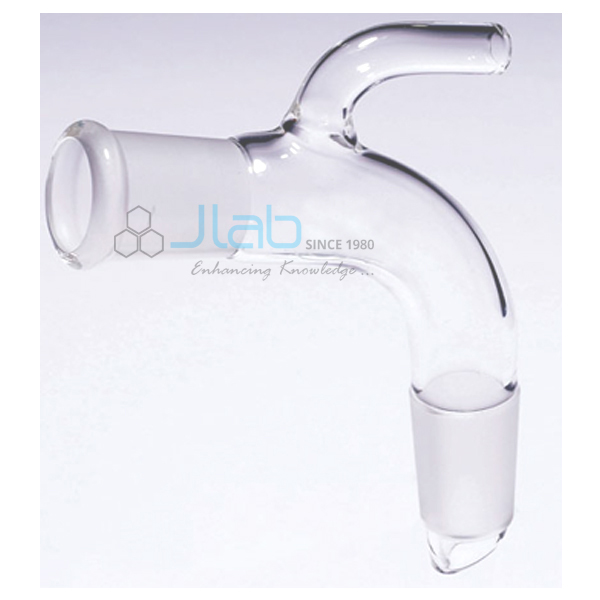

Bends with Vent (product code JA-B-1592) are glass bends that include a vent opening. A bend with vent joins two jointed components at an angle and keeps the assembly open to the atmosphere at that point, so pressure cannot build up in a closed system during heating or distillation. Six socket and cone combinations are listed, from micro-scale B10/B10 up to B29/B29, for school, college and research laboratories.
Specifications
The bend carries a ground-glass socket, a ground-glass cone and a vent. It is listed in six combinations, five with matching socket and cone sizes and one, B19/B24, that changes size across the bend.
| Product | Bends with Vent |
| SKU / Product code | JA-B-1592 |
| Type | Bend with vent |
| Joints | Ground-glass socket and cone, B-series |
| Vent | Vent opening on the bend |
| Socket / cone combinations listed | B10/B10, B14/B14, B19/B19, B19/B24, B24/B24, B29/B29 |
Applications of the bend with vent
A vented bend is used at the receiver end of a distillation carried out at normal pressure, so the receiving flask can be sealed to the bend without the system becoming closed.
- Simple distillation at atmospheric pressure with a sealed receiver joint
- Venting an assembly safely while it is heated
- Micro-scale distillation with B10 and B14 glassware
- Distillation practicals in school, B.Sc. and pharmacy laboratories
Scope of supply and ordering
The listing covers one bend with vent in the socket and cone combination you choose. Accessories, spares and quantities are confirmed on the quotation.
MOQ, lead time and packing are confirmed on the quotation for quantity and destination. JaincoLab supplies single laboratories, bulk school and college orders, and export orders to Africa, the Middle East and South and South-East Asia.
Frequently asked questions
Which combinations are listed?
B10/B10, B14/B14, B19/B19, B19/B24, B24/B24 and B29/B29, with the socket size first.
Why does a distillation need a vent?
Heating a fully closed system builds pressure. The vent keeps the assembly open to the atmosphere.
Is a version with a vacuum connection available?
Yes. Bends with Vacuum Connection are listed in the same category.
Related products
Other bends in the same category:
All bends are listed in the Bends category, part of the range from JaincoLab, a laboratory glassware manufacturer in India.
Request a quote
To order Bends with Vent, send the combinations, quantities and delivery destination through the JaincoLab contact page or email [email protected]. For tender or project supply, see our tenders page.
