B.O.D. Incubator
Product Code : JA-BI-2079

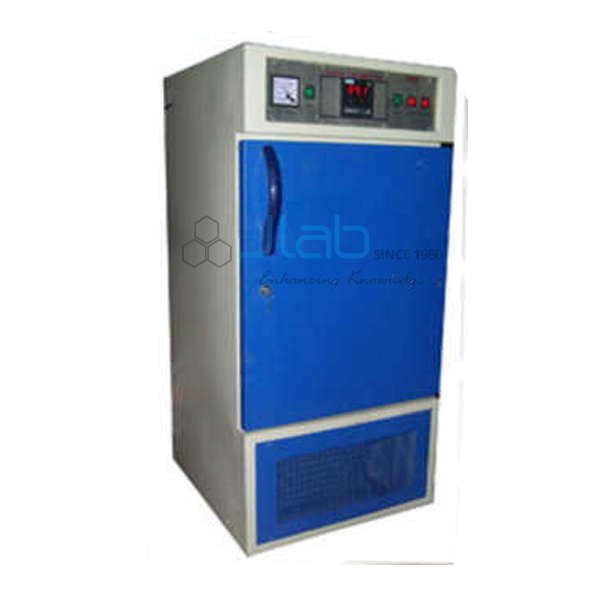

The B.O.D. Incubator (SKU JA-BI-2079) is a double-walled incubator cabinet for Biochemical Oxygen Demand work and other controlled incubation, with an acrylic inner door so samples can be checked without disturbing the chamber. JaincoLab makes this BOD incubator in six sizes from 65 to 420 litres, with options for PID control, day-night timing and internal lighting.
Specifications
The inner chamber is richly anodised aluminium or highly polished stainless steel with two or three removable perforated shelves; the exterior is thick mild steel in white stoving enamel or powder coat; the outer door has a magnetic gasket, lock and key, and the inner door is clear unbreakable acrylic.
| Product | B.O.D. Incubator |
| SKU | JA-BI-2079 |
| Construction | Double wall; inner anodised aluminium or polished stainless steel; outer mild steel, enamel or powder coat |
| Shelves | Two or three removable perforated shelves |
| Doors | Outer double-wall door with magnetic gasket, lock and key; inner clear acrylic door |
| Chamber sizes (W x D x H) | 405 x 405 x 405 mm, 2.4 cu ft, 65 L; 455 x 410 x 610 mm, 4 cu ft, 112 L; 505 x 415 x 830 mm, 6.1 cu ft, 171 L; 565 x 565 x 865 mm, 10 cu ft, 280 L; 650 x 580 x 900 mm, 12 cu ft, 336 L; 700 x 650 x 900 mm, 15 cu ft, 420 L |
| Options | Timer 0-24 h day-night cycle; CO2/air mixer nozzle; internal lighting with 3 fluorescent tubes; microprocessor PID controller |
| Recommended accessory | Automatic voltage stabiliser, 3 to 5 kVA |
| Temperature range | Confirmed on the quotation |
Applications of the BOD incubator
BOD cabinets hold samples at a fixed temperature for days, and with a day-night timer and lighting they are also used for seed, plant and insect studies that need controlled cycles.
- BOD determinations on water and wastewater samples
- Seed germination and plant growth studies with day-night timing
- Microbiology incubation at controlled temperatures
- Stability and storage studies in pharmacy laboratories
Scope of supply and ordering
The listing covers the B.O.D. incubator in the size and inner material ordered, with shelves and both doors. The PID controller, timer, lighting, CO2/air nozzle and voltage stabiliser are quoted separately; the temperature range is confirmed on the quotation. Accessories, spares and quantities are confirmed on the quotation.
Minimum order quantity, lead time and packing are confirmed on each quotation for the size, options, number of units and the delivery destination. JaincoLab supplies BOD incubators to environmental, agriculture and college laboratories and tender projects.
Frequently asked questions
Which sizes are listed?
Six sizes from 405 x 405 x 405 mm (2.4 cu ft, 65 L) to 700 x 650 x 900 mm (15 cu ft, 420 L).
Can the samples be seen without opening the chamber?
Yes. The inner door is clear unbreakable acrylic.
Is a day-night cycle available?
Yes. A 0-24 hour day-night timer and internal lighting with 3 fluorescent tubes are options.
