Adsorption in Packed Bed
Product Code : JA-AIPB-2664

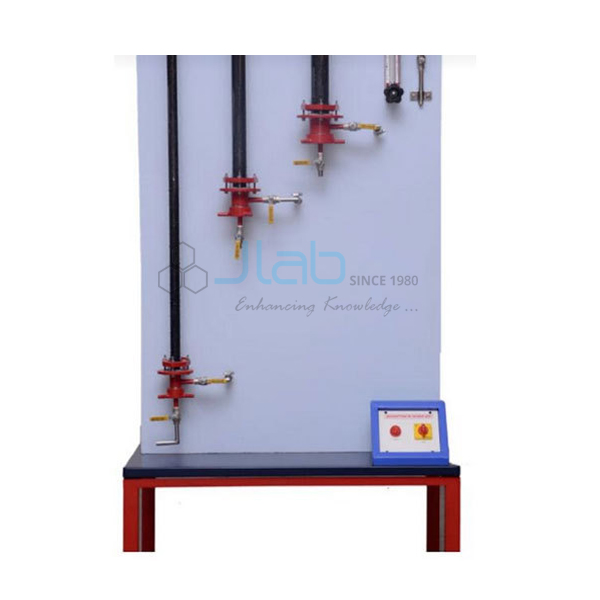

The Adsorption in Packed Bed apparatus (SKU JA-AIPB-2664) is a chemical engineering set-up for studying adsorption as a solution flows through a packed column of adsorbent. It has three glass columns of different diameter with different packing heights, so the effect of bed geometry can be compared. This packed bed adsorption apparatus pumps the feed from a 20 litre stainless steel tank through a rotameter and collects the outlet in a second 20 litre tank.
Specifications
The packed bed adsorption apparatus is specified by three glass reactor columns, stainless steel feed and receiving tanks of 20 litres each, a polypropylene magnetic-drive pump, a feed rotameter and a single-phase 220 V, 1.5 kW supply, as set out below.
| Product | Adsorption in Packed Bed |
| SKU | JA-AIPB-2664 |
| Reactor columns | 3 nos., Borosil glass (as listed), different diameters with different packing heights |
| Feed tank | Stainless steel, 20 litres, with feed lines and drain valve |
| Receiving tank | Stainless steel, 20 litres |
| Feed circulation | Magnetic-drive pump, polypropylene |
| Flow measurement | Rotameter for feed |
| Feed piping | PVC / SS |
| Timer | Electronic stopwatch |
| Control panel | On/off switch, mains indicator |
| Utilities | Water supply and drain; 1 phase, 220 V AC, 1.5 kW |
Experiments with the packed bed adsorption apparatus
The apparatus is used in mass transfer practicals to follow how the outlet concentration of a solute rises with time as the adsorbent bed becomes saturated, and how bed size and flow rate change that behaviour.
- Studying adsorption in a packed bed
- Recording outlet concentration against time (breakthrough behaviour)
- Comparing columns of different diameter and packing height
- Effect of feed flow rate on adsorption
Scope of supply and ordering
The listing covers the Adsorption in Packed Bed apparatus with three columns, tanks, pump, rotameter, piping, stopwatch and control panel. The instruments, laboratory glassware and chemicals for analysing the samples are not included and are chosen as per the system adopted. Accessories, spares and quantities are confirmed on the quotation.
MOQ, lead time and packing are confirmed on each quotation for the quantity and the delivery destination. Chemical engineering laboratory orders for engineering colleges and polytechnics, including tender orders, are supplied.
Frequently asked questions
How many columns are supplied?
Three glass columns of different diameter with different packing heights.
What is the tank capacity?
The feed tank and the receiving tank are stainless steel, 20 litres each.
Are analysis chemicals included?
No. Instruments, glassware and chemicals for analysis are chosen as per the adsorption system adopted and quoted separately.
