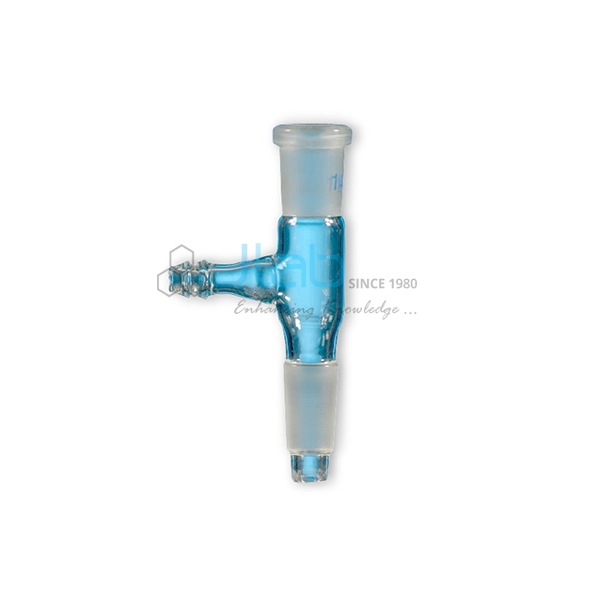

Adapters - Cone and Socket with T Connection
Product Code : JA-LAOK-1568
The Adapters - Cone and Socket with T Connection (product code JA-LAOK-1568) is a T connection adapter that sits between two jointed components and adds a side outlet. The cone fits the socket below, the socket above takes the next item, and the side arm of the T can be joined to tubing for gas, vacuum or venting. Nine cone and socket combinations are listed, from B14/B14 to B29/B29, for chemistry teaching and research laboratories.
Specifications
The adapter is a straight glass body with a ground-glass cone at one end, a ground-glass socket at the other and a side connection forming a T. It is listed in nine cone and socket combinations, including reducing versions with a larger cone and smaller socket.
| Product | Adapters - Cone and Socket with T Connection |
| SKU / Product code | JA-LAOK-1568 |
| Type | Adapter, cone and socket with T connection |
| Joints | Ground-glass cone and ground-glass socket, B-series |
| Side connection | T connection on the body |
| Cone / socket combinations listed | B14/B14, B19/B14, B24/B14, B19/B19, B24/B19, B29/B19, B34/B19, B24/B24, B29/B29 |
Applications of the T connection adapter
The adapter is used when a set-up needs a gas, vacuum or vent connection at a joint without giving up that joint for other apparatus.
- Adding an inert gas inlet between a flask and a condenser
- Taking a vacuum or vent line off a distillation or filtration assembly
- Reducing from a larger joint to a smaller one while adding a side outlet
- Organic chemistry and synthesis practicals in colleges and research laboratories
Scope of supply and ordering
The listing covers one cone and socket adapter with T connection, in the combination you select from the nine in the table. Accessories, spares and quantities are confirmed on the quotation.
MOQ, lead time and packing are confirmed on each quotation according to quantity and destination. JaincoLab supplies single laboratories, bulk orders from colleges and institutes, and export orders to Africa, the Middle East and South and South-East Asia.
Frequently asked questions
Which combinations are listed?
B14/B14, B19/B14, B24/B14, B19/B19, B24/B19, B29/B19, B34/B19, B24/B24 and B29/B29, with the cone size first.
What is the side connection used for?
It is joined to tubing to supply gas, apply vacuum or vent the apparatus.
Can it reduce the joint size as well?
Yes. Combinations such as B24/B14 or B34/B19 have a larger cone than socket.
Related products
Related adapters from the same range:
- Adapters - Socket and Rubber Tubing, Straight Connection
- Adapters - Multiple, Two Parallel and One 45 Degree Neck
- Adapters - Cone and Screw Thread
- Adapters - Stopcock Cone and Rubber Tubing Straight Connection
See every item in Laboratory Adapter Oscilloscope Kit or the complete range from JaincoLab, a laboratory glassware manufacturer in India.
Request a quote
To order the Adapters - Cone and Socket with T Connection, send the combinations, quantities and delivery destination through the JaincoLab contact page or email [email protected]. For tender or project supply, see our tenders page.
