Accelerometer
Product Code : JA-MLE-9379

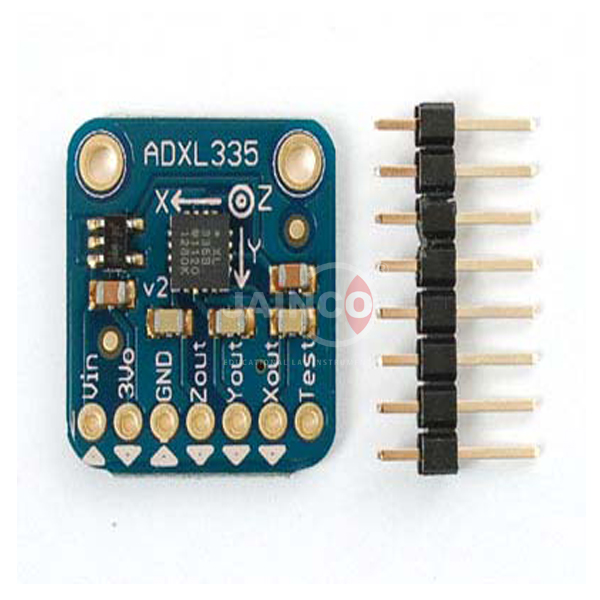

The Accelerometer (SKU JA-MLE-9379) is a triple-axis accelerometer breakout board from Adafruit, supplied by JaincoLab for physics, electronics and STEM projects. It gives three analog outputs, one each for the X, Y and Z axes, covering -3 g to +3 g, and it is a 5 V-ready module, so this 3-axis accelerometer module for Arduino and other 5 V microcontrollers can be wired straight into student data-logging and motion experiments.
Specifications
The board provides three ratiometric analog outputs for X, Y and Z: 0 g sits at half of the 3.3 V output (1.65 V), -3 g at 0 V and +3 g at 3.3 V, with full scaling in between, and the module is ready to interface with microcontrollers that use 5 V I/O levels, such as Arduino, ATmega8 and ATmega32.
| Product | Accelerometer |
| SKU | JA-MLE-9379 |
| Brand | Adafruit |
| Type | Triple-axis accelerometer breakout board |
| Outputs | 3 analog outputs: X, Y and Z axes |
| Output scaling | Ratiometric: -3 g at 0 V, 0 g at 1.65 V, +3 g at 3.3 V |
| Measuring range | -3 g to +3 g |
| Interface | 5 V ready; for microcontrollers with 5 V I/O such as Arduino, ATmega8, ATmega32 |
Applications of the 3-axis accelerometer module
Students connect the three outputs to the analog inputs of a microcontroller to record acceleration along each axis, which turns motion, tilt and vibration into data that can be plotted and analysed in physics and electronics lessons.
- Measuring the acceleration of trolleys, pendulums and falling objects in mechanics practicals
- Tilt and orientation sensing using the static 1 g of gravity on each axis
- Arduino-based data logging and STEM projects
- Introducing sensors, analog-to-digital conversion and calibration in electronics courses
Scope of supply
The listing covers the Adafruit triple-axis accelerometer breakout board. Microcontroller boards and connecting wires are not part of this listing. Accessories, spares and quantities are confirmed on the quotation.
Packing, MOQ and lead time
Minimum order quantity, lead time and packing are confirmed on each quotation for the quantity and destination. Single modules, class sets for STEM labs and bulk tender quantities can be quoted, including export to Africa, the Middle East and South and South-East Asia.
Frequently asked questions
What range does the accelerometer measure?
-3 g to +3 g on each of the X, Y and Z axes.
What output does it give?
Three ratiometric analog voltages: 0 V at -3 g, 1.65 V at 0 g and 3.3 V at +3 g.
Can it be used with Arduino?
Yes. It is a 5 V-ready module for microcontrollers with 5 V I/O levels, such as Arduino, ATmega8 and ATmega32.
What should a quotation request include?
Send the SKU JA-MLE-9379, the number of modules and the delivery destination.
Related products
More motion apparatus is listed under mechanics lab equipment in the JaincoLab range of physics lab equipment.
Request a quote
For a price on the Accelerometer, send the quantity and destination through the JaincoLab contact page or email [email protected].
